Hyundai Tucson: Front Seats / Manual seats - Seat adjustments
The front seat can be adjusted by using the levers located underneath the front part of the seat or on the outer side of the seat.
Forward and rearward adjustment
To move the seat forward or rearward:
1. Pull up the seat slide adjustment lever and hold it.
2. Slide the seat to the desired position.
3. Release the lever and make sure the seat is locked in place. Move forward and rearward without using the lever. If the seat moves, it is not locked properly.
Seatback angle
To recline the seatback:
1. Lean forward slightly and lift up the seatback lever.
2. Carefully lean back on the seat and adjust the seatback to the desired position.
3. Release the lever and make sure the seatback is locked in place.

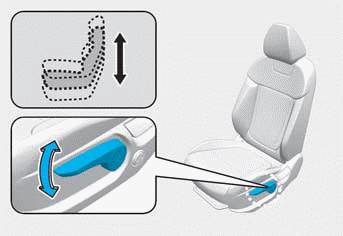

Seat height
To change the height of the seat:
- Push down on the lever several times, to lower the seat.
- Pull up on the lever several times, to raise the seat.
