Hyundai Tucson: Light Bulbs / High Mounted Stop Light Replacement
.png)

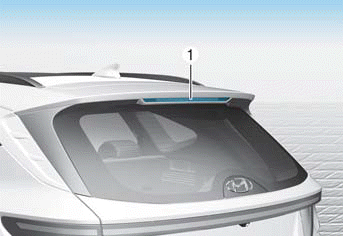

If the LED light 1 does not operate, contact an authorized HYUNDAI dealer for replacement.
The LED light cannot be replaced as a single unit. A skilled technician should check or repair the LED light, for it may damage related parts of the vehicle.
Rear Combination Light
Replacement
Type A
Type B
1 Tail light
2 Tail/Stop light
3 Turn signal light
4 Reverse light
5 Rear side marker
Stop/Tail light (Outside)
1. Turn off the engine.
2. Open the liftgate.
3. Loose ...
License Plate Light Replacement
License plate light (Bulb type)
1. Using a flat-blade screwdriver, gently
pry the lens cover from the lamp
housing.
2. Remove the bulb by pulling it straight
out.
3. Install a new bulb.
4. ...
