Hyundai Tucson: Front Door / Front Door Trim

- Components Location

1. Front door trim


- Replacement



• When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.

1.Disconnect the negative ( - ) battery terminal.

2.Remove the front door quadrant inner cover (A).

3.Disconnect the twitter speaker connector (A).

4.After loosening the mounting screws, remove the lower part of the front door trim (A) using a flat - tip screwdriver.

5.Disconnect the IMS switch connector (A).

6.Separate the front door inside handle cage (A).

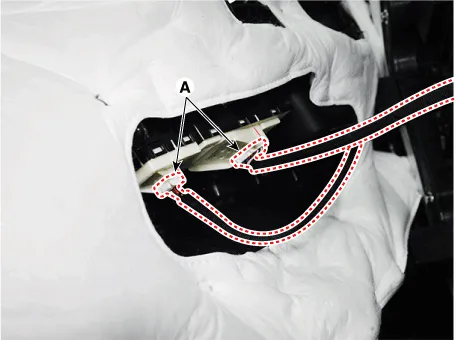

7.Disconnect the window switch connectors (A).

8.To install, reverse the removal procedure.



• Be sure to replace the clip (fastener) when re-installing after detaching the door trim. ※ In case of non-exchange, watertightness / exit problems may occur

Water tightness prevention


• Make sure the connector is connected properly.

• Make sure the door locks / unlocks and opens / closes properly.

• Replace any damaged clips (or pin-type retainers).

• Make sure the glass is operated properly.

    Repair procedures
    - Adjustment Glass Adjustment     • Check the glass run channel for damage or deterioration, and replace it if necessary. 1.Remove the front door trim.(Refer to Front Door - "F ...

    Front Door Inside Handle
    - Replacement 1.Disconnect the negative ( - ) battery terminal. 2.Remove the front door trim.(Refer to Front Door - "Front Door Trim") 3.Loosen the mounting screws and remove the front door ins ...
