Hyundai Tucson: Driver Assistance System / Cruise Control (CC)
.png)

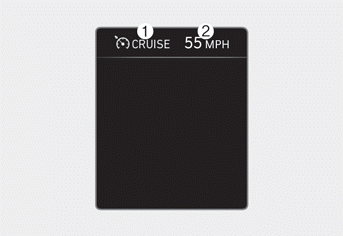

1 Cruise indicator light
2 Set speed
Cruise Control allows you to drive at speeds above 20 mph (30 km/h) without depressing the accelerator pedal.
Blind-Spot View Monitor (BVM)
Blind-Spot View Monitor uses the wideside
view cameras to display the rear
blind spot area of your vehicle on the
instrument cluster when the turn signal
is turned on.
Information
Refer to ...
Cruise Control Operation
To set cruise speed
1. Accelerate to the desired speed,
which must be more than 20 mph (30
km/h).
2. Press the Driving Assist ()
button
at the desired speed. The set speed
and Cruise () ...
